Next-Gen High-Precision Multi-Stage Roll
Press Featuring an innovative Independent Pressure Control Mechanism
(Bi-directional Pressurizing System)
Going beyond mere gap adjustment, this system delivers complete in-line control over the actual pressure between each roll.
Ideally suited for advanced technology sectors demanding ultra-precision manufacturing—including secondary battery electrodes, resin sheets, and new material powder molding. It seamlessly achieves the optimal pressure balance between individual rolls, a feat previously impossible with conventional multi-stage roll presses.
-

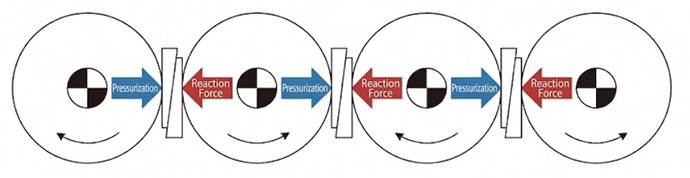

Roll Layout

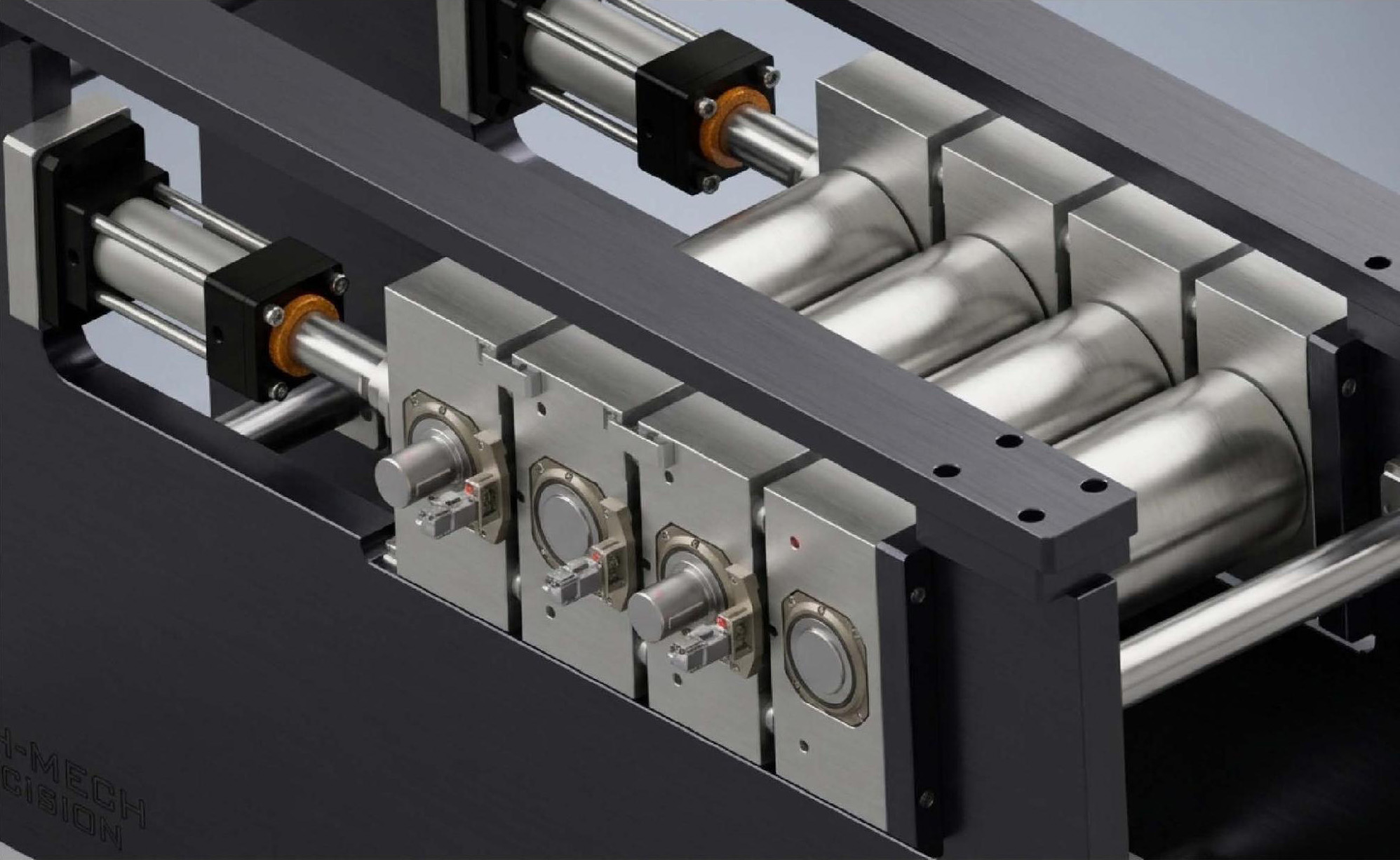

Schematic Diagram (System Concept)
Innovative Technical Features (International Patent Pending)
01 Bi-Directional Opposed Pressurization System
While the “Primary Pressurizing Mechanism (large hydraulic cylinders)” applies collective pressure downstream, the “Secondary Pressurizing Mechanism (small hydraulic cylinders)” is positioned to apply independent counter-force from the downstream side back toward the upstream side. This opposed pressurization allows for extremely precise adjustment of the individual pressure balance for each roll.
02 Linear Pressure Transmission & Upper/Lower Counter-Force Structure
The main pressurizing axis, along with the receiving and transmitting sections of the roll supports, are aligned perfectly in a straight line (horizontally) when viewed from the front. This minimizes pressure loss to the absolute limit. Simultaneously, the secondary pressurizing mechanisms placed above and below apply a well-balanced counter-force, maintaining an ideal, distortion-free pressurization line.
03 In-Line Pressure Detection & Control
A high-precision “Pressure Detection Unit” is integrated into the receiving section of each roll support. By monitoring the actual pressure applied from both sides in real time, the system can easily and reliably perform feedback adjustments to the optimal pressure, even when faced with variations in material thickness or changes in viscosity.
04 Wedge-Type Gap Adjustment Mechanism
A proprietary “Gap Adjustment Mechanism (wedge structure)” featuring opposing sloped surfaces is installed between each roll support. Micron-level gap adjustments can be made simply by operating the control panel. This mechanism firmly maintains a consistent gap while allowing the pressure to be controlled independently.
05 Distortion Prevention via High-Precision Rail Guides
A highly rigid “Rail Guide” is positioned at the lower part of the main frame opening, allowing the guide receivers on the bottom of the roll supports to slide smoothly. This completely eliminates pressure loss caused by frame distortion or deflection during pressurization, guaranteeing highly reproducible processing. Furthermore, a “Retraction Member (following mechanism)” ensures smooth roll release during setup changes.
Roll Press Machine Comparison Chart
Comparison between Conventional Machines and This System
| Comparison Item | Conventional Multi-Stage Roll Press | This System |
|---|---|---|
| Roll Load Control | Collective setting for all stages | Individual & optimized control for each stage |
| Flexibility of Rolling Conditions | Fixed/rigid operation | Optimized according to material characteristics |
| Frame Rigidity | Large amount of deformation | Minimal/negligible deformation |
| Roll Gap Accuracy | Fluctuates depending on the load | Maintains set values with high precision |
| Press Pressure Accuracy | Fluctuates depending on the load | Always maintains constant pressure |
| Product Density Uniformity | Standard level | Significant improvement in uniformity |
| Forming & Dimensional Accuracy | Standard level | Achieves high-precision forming |
| Quality Stability | Dependent on the environment | Ensures extremely high stability |
Standard Specifications (Example of 4-Roll Press Model)
We provide optimal custom engineering for the number of rolls, roll sizes, and pressurization capacity to match your production line and the characteristics of the target materials (resins, secondary battery electrode materials, powders, etc.).
| Item | Specifications | |
|---|---|---|
| Equipment Name | Independent Pressure Control High-Precision Multi-Stage Roll Press | |
| Roll Configuration | Standard 4-roll configuration (1st to 4th rolls) *Configurations with 2, 3, or 5+ rolls are also available. | |
| Roll Rotation Direction | Alternating forward and reverse rotation between adjacent rolls | |
| Main Pressurizing Mechanism (Primary) | High-output hydraulic cylinder system (collective pressurization from the upstream side) | |
| Individual Pressure Adjustment (Secondary) | Small hydraulic cylinder groups (positioned at 4 locations, upper and lower, at both ends of each roll / independent counter-force control) | |
| Gap Adjustment Mechanism | Wedge-shaped fine-adjustment mechanism | |
| Pressure Monitoring | Real-time pressure sensors integrated into each roll support section | |
| Support & Guide System | Highly rigid linear rail guide + bottom guide receiver structure | |
